Wittman Tailwind W-10: The Masterclass in Aerodynamic Efficiency

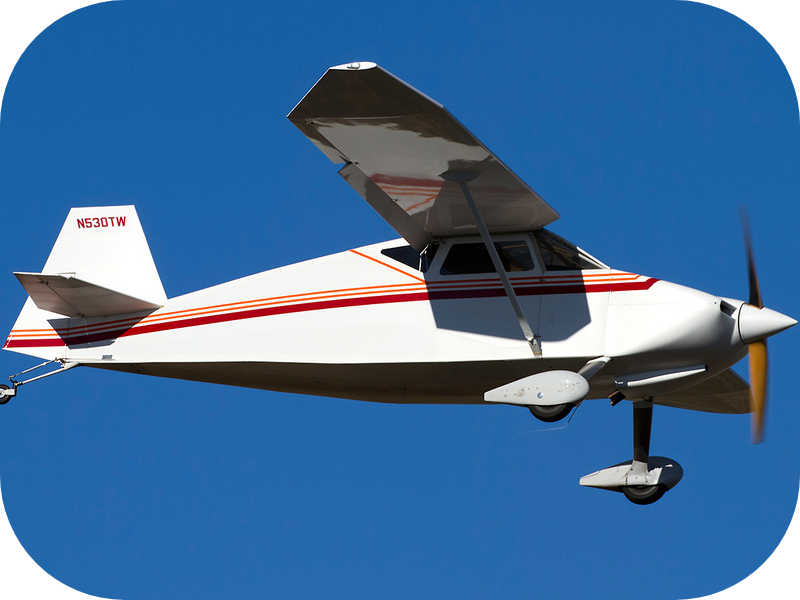

The Wittman Tailwind is not just an airplane; it is a mathematical miracle. Designed by the legendary air racer Steve Wittman in the 1950s and perfected with the W-10 model, it defied the aviation establishment. While big manufacturers were building heavy, drag-inducing trainers, Wittman built a “flying box” that could outrun almost anything in its class. It remains the gold standard for cross-country homebuilts—a plane that proves that if you get the math right, you don’t need a massive engine to fly like a bullet.

Why Is It a Legend?

Aerodynamic Sorcery: At first glance, the Tailwind looks like a simple, boxy high-wing plane. But don’t let the looks fool you. Every inch was designed to eliminate drag. Steve Wittman’s “secret sauce” was his unique wing profile—a thin, high-lift design that allows the Tailwind to cruise at speeds that make factory-built Cessnas and Pipers look like they are standing still.

The Giant Slayer: The W-10 is famous for its “bang for the buck.” Powered by a standard 150-hp Lycoming engine, it can cruise at 200 mph. To achieve that speed in a certified aircraft, you would typically need 250+ horsepower and retractable landing gear. The Tailwind does it with a fixed gear and a fraction of the fuel.

The “Wittman Gear”: One of the most famous inventions in aviation history is the Tailwind’s landing gear. It uses simple, tapered steel rods that are incredibly light, virtually indestructible, and aerodynamically “invisible.” This design was so successful that it was later licensed by Cessna and used on millions of aircraft worldwide.

Classic Construction, Modern Results: The W-10 uses a tried-and-true 4130 steel tube fuselage and a wooden wing structure. It’s a “builder-friendly” aircraft that doesn’t require high-tech composites or complex aluminum riveting, yet it yields world-class performance. It is a true “pilot’s airplane”—fast, responsive, and incredibly rewarding to fly over long distances.

Performance and Key Numbers

The W-10 Tailwind is a cross-country machine. It was built to get two people and their luggage across the country faster and cheaper than almost any other light aircraft.

General Specifications:

• Crew: 1 pilot and 1 passenger (Side-by-side)

• Wingspan: 24 ft (7.32 m)

• Length: 19 ft 3 in (5.87 m)

• Empty Weight: 800 – 900 lbs (363 – 408 kg)

• Max Takeoff Weight: 1,425 – 1,500 lbs (646 – 680 kg)

• Useful Load: Approx. 600 lbs (272 kg)

• Typical Engine: Lycoming O-320 (150 – 160 hp) or Oldsmobile V8 conversions.

Performance:

• Top Speed: 230 mph (370 km/h)

• Cruise Speed (75% power): 200 – 210 mph (322 – 338 km/h)

• Stall Speed: 55 mph (89 km/h)

• Rate of Climb: 1,200 – 1,500 ft/min (6 – 7.6 m/s)

• Takeoff Distance: 600 ft (183 m)

• Range: 600 – 700 miles (1,120 km)

• Fuel Consumption: 7 – 9 gallons per hour (26 – 34 L/h)

In short, the Wittman Tailwind W-10 is the ultimate expression of “function over form.” It isn’t the prettiest plane on the ramp, but it is often the fastest. It is the perfect choice for the builder who wants a serious traveling machine that can outrun $200,000 factory planes while burning half the fuel. It is Steve Wittman’s enduring gift to the world of grassroots aviation.
