Preceptor STOL King

Preceptor STOL King: The Ultimate Off-Road Aircraft

The Preceptor STOL King is a two-seat, amateur-built aircraft designed for extreme short takeoffs and landings (STOL). Think of it as an off-road vehicle for the sky. It’s built to operate from very rough, unprepared fields, thanks to its tall, rugged landing gear and incredible slow-flight capabilities.

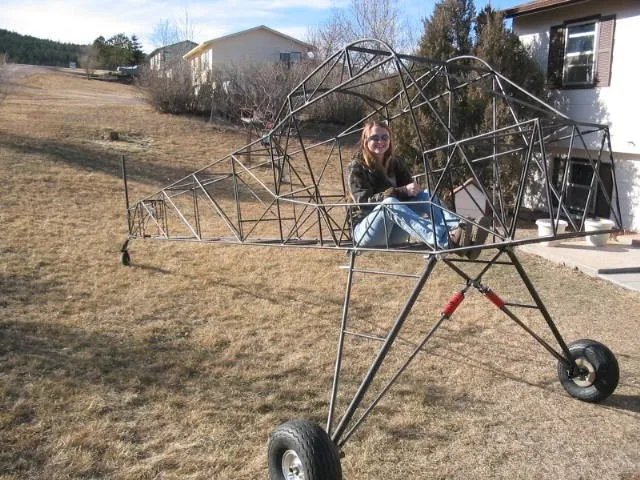

Its construction is traditional and strong, using a welded steel tube frame and fabric-covered wings. For convenience, the wings can be folded for storage or transport.

Performance Highlights

This aircraft’s specialty is flying extremely slowly and using tiny spaces to land and take off. Its performance varies depending on the engine installed (from 75 to 150 hp).

Specifications LSA Preceptor STOL King

Crew: one
Capacity: one passenger
Length: 23.8 ft (7.3 m)
Wingspan: 31 ft 6 in (9.60 m)
Wing area: 158.2 sq ft (14.70 m2)
Empty weight: 631 lb (286 kg)
Gross weight: 1,235 lb (560 kg)
Fuel capacity: 20 U.S. gallons (76 L; 17 imp gal)

Engine: 150 hp

Maximum speed: 124 mph; 108 kn (200 km/h)
Cruise speed: 99 mph; 86 kn (160 km/h)
Stall speed: 15 mph; 13 kn (24 km/h)
Range: 320 mi (278 nmi; 515 km)
Rate of climb: 1,200 ft/min (6.1 m/s)
Wing loading: 7.8 lb/sq ft (38.1 kg/m2)

Engine: 75 hp

Horsepower: 75 – 150 hp
Propeller: 72 x 43
Overall length: 23 ft – 8 in
Height: 7 ft – 3 in
Wingspan: 31 ft – 6 in
Wing area: 158 square feet
Wing loading: 7.6 lb/sq.ft
Empty weight: 600 lbs
Gross weight: 1200 lbs
Useful weight: 600 lbs
Fuel capacity: 20 + US gallons
Cabin width: 32.50 inches
Ultimate “g” loading: +6.0 – 3.0
Best speed: 100 mph
Cruise speed: 90 mph
Stall Speed @ Gross w/Full Flaps: 15 mph
Service ceiling: 12,000
Takeoff distance: 50 ft
Landing distance: 50 ft
Rate of Climb (gross): 1200 fpm
Maximum range: up to 700 miles
Landing gear: FG (Tailwheel)
Seats: 2

Engine: 120 hp

Horsepower: 75 – 150 hp
Propeller: 72 x 43
Overall length: 23 ft – 8 in
Height: 7 ft – 3 in
Wingspan: 31 ft – 6 in
Wing area: 158 square feet
Wing loading: 7.6 lb/sq.ft
Empty weight: 600 lbs
Gross weight: 1200 lbs
Useful weight: 600 lbs
Fuel capacity: 20 + US gallons
Cabin width: 32.50 inches
Ultimate “g” loading: +6.0 – 3.0
Best speed: 130 mph
Cruise speed: 100 mph
Stall Speed @ Gross w/Full Flaps: 15 mph
Service ceiling: 12,000
Takeoff distance: 50 ft
Landing distance: 50 ft
Rate of Climb (gross): 1200 fpm
Maximum range: up to 700 miles
Landing gear: FG (Tailwheel)
Seats: 2

Engine: VW 50 hp

HP range: 75-130
Length: 24 ft
Wingspan: 31.5 ft
Wing area: 158 sq.ft
Empty weight: 600 lb
Gross weight: 1200 lb
Fuel capacity: 20USG
Cruise: 100 mph
Stall: 15 mph
Range: 520 sm
Rate of climb: 1200 fpm
Takeoff dist: 50 ft
Landing dist: 50 ft
Cockpit width: 33 in
Seats: 2 tandem
Landing gear: tailwheel
